IRB 4600-60/2.05
軸數：6
荷重：60kg
工作范圍：2050mm
重復定位精度：0.06mm
版本：通用版、鑄造版
防護等級標配：IP67
防護等級選配：鑄造專家II代、鑄造權威II代
安裝方式：落地、斜置、倒置、支架
本體重量：425kg
主要應用：裝配、去毛刺、擠膠、上下料、物料搬運、包裝/碼垛、彎板機上下料

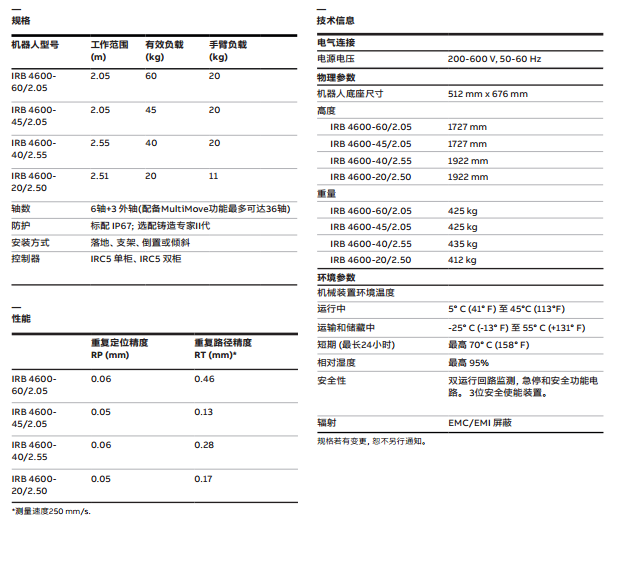

IRB 4600-60/2.05
Number of axes: 6
Load: 60kg

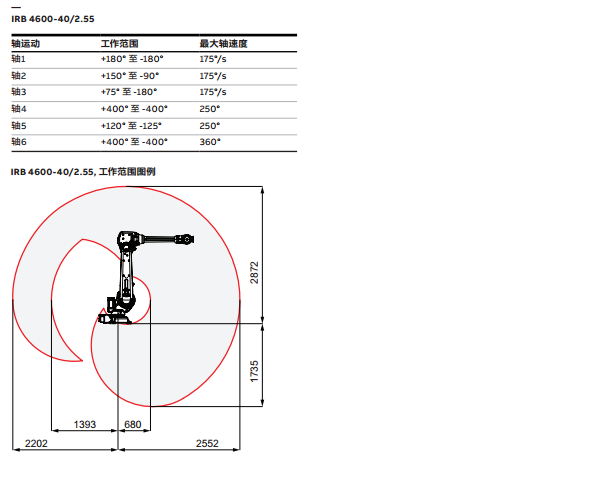

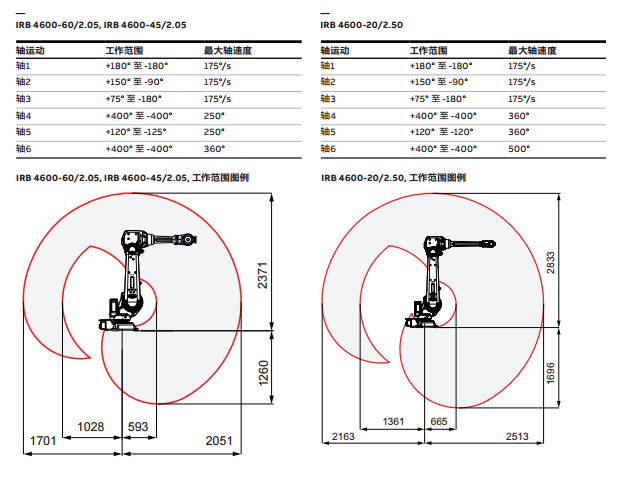

Working range: 2050mm
Repeat positioning accuracy: 0.06mm
Version: Universal version, casting version
Protection grade standard: IP67
Protection level matching: Casting Expert II, Casting Authority II
Installation method: floor, oblique, inverted, bracket
Body weight: 425kg

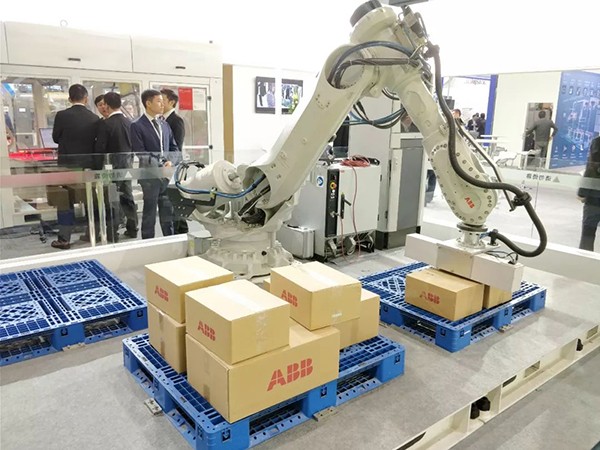

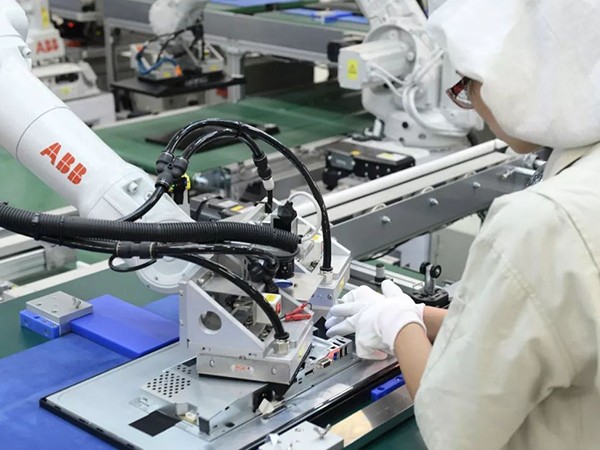

Main applications: assembly, deburring, extrusion, loading and unloading, material handling, packaging/palletizing, and loading and unloading of plate bending machines

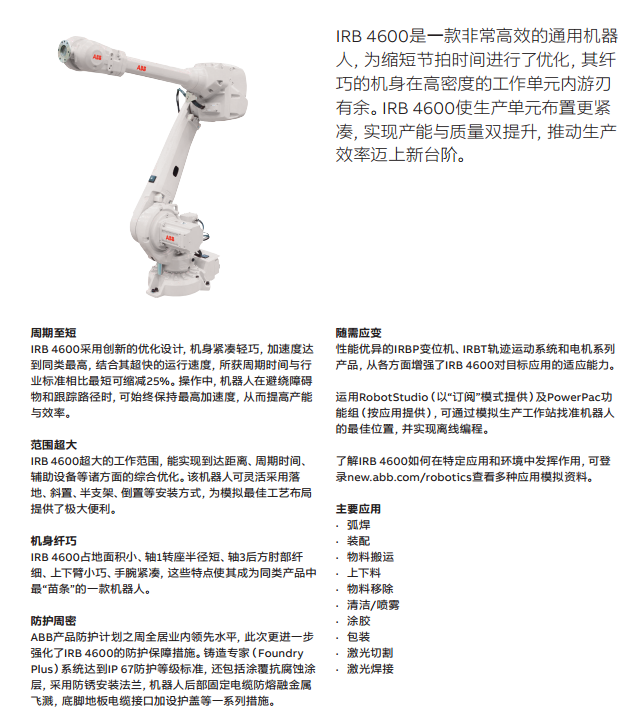

IRB 4600是一款非常高效的通用機器人，為縮短節拍時間進行了優化，其纖巧的機身在高密度的工作單元內游刃有余。IRB 4600使生產單元布置更緊湊，實現產能與質量雙提升，推動生產效率邁上新臺階。
IRB 4600 is a very efficient general-purpose robot, optimized for shortening the cycle time, and its slim body is easy to do in a high-density work cell. The IRB 4600 makes the layout of production units more compact, achieves both productivity and quality improvements, and promotes production efficiency to a new level.
